Introduction
Mesh bag packaging is one of the most versatile solutions in the packaging industry. From agricultural produce to retail products, mesh bags provide breathability, visibility, and a premium presentation that consumers love. ZSYAN (Shuangyan Intelligent Equipment) manufactures intelligent mesh bag packaging machines that combine German engineering precision with competitive pricing, serving clients in over 30 countries worldwide.
This comprehensive guide covers everything you need to know about mesh bag packaging machines from ZSYAN, helping you select the right solution for your production needs.
Why Choose Mesh Bag Packaging?
Mesh bag packaging offers unique advantages that traditional bags cannot match:
Product Visibility: Consumers can see the product inside, building trust and reducing purchase hesitation
Breathability: Ideal for fruits, vegetables, and onions that need air circulation to maintain freshness
Lightweight: Mesh bags use 30-50% less material than solid bags, reducing packaging costs
Stackability: Mesh bags stack efficiently on shelves and in transportation, optimizing logistics
Premium Appearance: Mesh texture gives products a professional, retail-ready presentation
Customizable Sizes: From small sample bags (50g) to bulk bags (5kg+), mesh bags adapt to any product

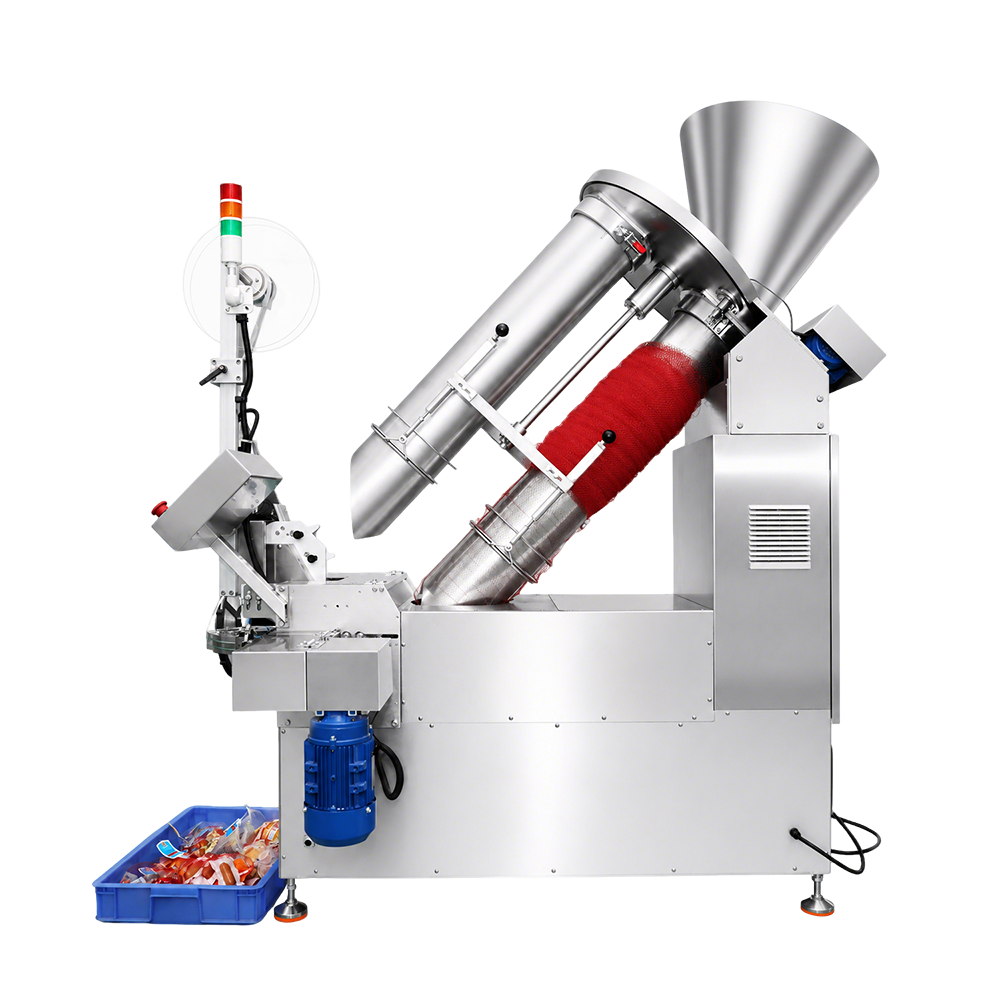

ZSYAN's inclined design optimizes film usage and bag formation for mesh materials, which require special handling due to their open weave structure.
Technical Specifications:
Speed: 30-40 bags per minute
Bag Size Range: 100mm x 150mm to 400mm x 600mm
Film Type: PET/PE mesh, PP mesh, biodegradable mesh
Sealing: Back seal, three-side seal, four-side seal
Control: PLC with 7-inch touch screen
Accuracy: ±1mm film positioning
Key Features:
Inclined film path reduces mesh distortion during feeding
Photoelectric tracking with color mark detection for precise cutting
Servo-driven film feeding ensures consistent bag length
Automatic counting and discharge
Quick changeover between different bag sizes
Ideal Applications:
Onions, garlic, potatoes, and citrus fruits
Frozen seafood in mesh bags
Hardware items (nuts, bolts, screws)
Toys and promotional merchandise
Agricultural seeds and bulbs
Horizontal Mesh Bag Packaging Machine
Designed for high-speed production of horizontal mesh bags with automatic film feeding and cutting.
Technical Specifications:
Speed: 40-60 bags per minute
Film Width: Up to 500mm
Bag Length: 100-500mm adjustable
Power: 220V/50Hz, 3.5kW
Weight: 800kg (machine only)
Key Features:
Continuous horizontal motion for smooth film transport
Automatic tension control prevents mesh stretching
Hot wire cutting for clean mesh edges (prevents fraying)
Integrated counter for batch production
Emergency stop system for operator safety
Ideal Applications:
High-volume fruit and vegetable packaging
Retail produce chains
Supermarket pre-packaged produce
Export-grade agricultural products
Double Roll Film Mesh Bag Packaging Machine
Dual-film system enables printed mesh bags with solid backing, combining visibility with branding capability.
Technical Specifications:
Film Rolls: 2 independent rolls (mesh + solid film)
Speed: 25-35 bags per minute
Bag Types: Laminated mesh bags, window mesh bags
Printing Registration: Servo-driven photoelectric tracking
Key Features:
Simultaneous lamination of mesh and solid film layers
Independent temperature control for each sealing station
Automatic film tracking with high-precision sensors
Print registration accuracy within ±0.5mm
Option for printed messaging on solid layer
Ideal Applications:
Branded produce packaging (supermarkets)
Premium gift boxes with mesh windows
Product differentiation with custom printing
Retail-ready packaging with barcodes
Strip Mesh Bag Packaging Machine
Specialized for narrow strip mesh bags used in small-scale packaging applications.
Technical Specifications:
Strip Width: 30-150mm
Speed: 50-70 bags per minute
Bag Size: 50mm x 80mm to 150mm x 200mm
Accuracy: ±0.5g weight control (with external scale)
Key Features:
Narrow film processing capability
High-speed operation for small bag formats
Automatic scrap removal system
Compact footprint (space-saving design)
Ideal Applications:
Small fruit portions (grapes, cherry tomatoes)
Spice bundles and herb packaging
Small hardware items
Sample and promotional bags
Vertical Mesh Bag Packaging Machine
Full form-fill-seal machine that creates mesh bags from roll film, offering maximum flexibility.
Technical Specifications:
Forming Type: Back seal or three-side seal from roll film
Speed: 30-50 bags per minute
Filling: Manual or automatic volumetric filler
Bag Dimensions: Customizable within machine range
Key Features:
Complete bag formation from flat film
Versatile filling options (manual hopper, auger, volumetric)
Easy cleaning and maintenance
Food-grade stainless steel contact parts
Ideal Applications:
Fresh produce packaging
Export fruit and vegetable shipments
Organic and specialty produce
Custom-size mesh bag production
How Mesh Bag Packaging Machines Work
Step 1: Film Feeding
Mesh film is fed from the roll through servo-driven rollers. Unlike solid films, mesh requires gentle tension control to prevent distortion. ZSYAN machines use specialized rollers with textured surfaces that grip the mesh without damaging the weave.
Step 2: Bag Formation
The film is wrapped around the forming tube, which shapes the bag according to the desired format. The inclined design of ZSYAN's machines reduces stress on the mesh material during forming, preventing tears and misalignment.
Step 3: Longitudinal Sealing
Heated rollers or a sealing jaw create the side seam of the bag. For mesh materials, temperature is precisely controlled to melt the bonding fibers without closing the mesh openings.
Step 4: Transverse Sealing and Cutting
Cross-sealing jaws close around the filled portion, creating the bottom seal of the current bag and the top seal of the next. A hot wire cutter severs the mesh cleanly, preventing fraying.
Step 5: Discharge and Counting
Completed mesh bags are discharged onto a conveyor or collection tray. An automatic counter tracks production output, and bags can be automatically sorted by size or batch.
Choosing the Right Mesh Bag Packaging Machine
Factor 1: Production Volume
| Daily Output | Recommended Machine |
|---|
| Under 3,000 bags | Inclined mesh bag machine |
| 3,000-10,000 bags | Horizontal mesh bag machine |
| 10,000-30,000 bags | Double roll film machine |
| Over 30,000 bags | Multi-unit system with auto-filler |
Factor 2: Product Type
Fresh produce (fruits/vegetables): Inclined or horizontal machine with gentle film handling
Frozen products: Horizontal machine with cold-resistant sealing system
Hardware items: Strip mesh machine for small items or vertical machine for bulk
Retail branded bags: Double roll film machine for printed backing
Factor 3: Bag Format Requirements
Simple back seal: Inclined or vertical machine (most economical)
Premium laminated bags: Double roll film machine
Small sample bags: Strip mesh machine
Custom sizes: Horizontal machine with quick changeover
Investment and ROI Analysis
Cost Comparison
| Cost Factor | Manual Packing | Semi-Auto Machine | ZSYAN Fully Automated |
|---|
| Labor (per shift) | 6 operators | 3 operators | 1 operator |
| Output (bags/day) | 300 | 2,000 | 8,000-25,000 |
| Packaging Quality | Inconsistent | Good | Professional |
| Film Waste | High (15-20%) | Medium (5-8%) | Low (2-3%) |
| Payback Period | N/A | 8-14 months | 5-10 months |
Tangible Benefits
Labor Savings: 70-85% reduction in packing operators
Material Savings: Precise film tracking reduces waste by 60-70%
Throughput Increase: 10-50x output compared to manual packing
Quality Consistency: Uniform bag size, seal strength, and appearance
Scalability: Easy to add auto-filler or conveyor for full automation
Maintenance and Support
Preventive Maintenance Schedule
| Frequency | Task |
|---|
| Daily | Clean sealing jaws, check film path, lubricate moving parts |
| Weekly | Inspect photoelectric sensors, verify bag dimensions, check electrical connections |
| Monthly | Calibrate servo motors, replace worn seals, clean film rollers |
| Quarterly | Full system inspection, motor bearing check, PLC backup |
Spare Parts Availability
ZSYAN maintains a global spare parts network:
Standard parts: Sealing jaws, cutters, forming tubes, film rollers
Consumables: O-rings, filters, heating elements
Express shipping: 3-5 days worldwide via DHL/FedEx
Bulk discounts: 10% off for orders of 5+ spare part kits
Frequently Asked Questions
Q1: What is the typical lead time for a ZSYAN mesh bag packaging machine?
A: Standard machines ship within 25-35 days. Custom configurations with special materials or integrations may take 40-50 days.
Q2: Can the machine handle different mesh materials (PP, PET, biodegradable)?
A: Yes, ZSYAN machines can process various mesh types. Biodegradable mesh requires lower sealing temperatures, which can be adjusted on the PLC control panel.
Q3: What is the film width range for mesh bag packaging?
A: Standard machines accept film widths from 200mm to 500mm. Double roll film machines support widths up to 600mm per roll.
Q4: Does the machine support automatic product filling?
A: Yes, ZSYAN machines can be integrated with automatic volumetric fillers, auger fillers, or checkweigher systems for fully automated production lines.
Q5: What certifications does ZSYAN hold?
A: CE marking (EU Machinery Directive), ISO 9001 quality management, and FDA-compliant material certifications for food-grade applications.
Q6: How does ZSYAN handle after-sales support?
A: 24/7 online support via WhatsApp, email, and video call. On-site service available worldwide. Spare parts shipped express (3-5 days).
Q7: Can I visit the factory before purchasing?
A: Absolutely. We welcome factory visits and offer virtual tours via video call. Contact us to schedule your visit.
Q8: What is the expected lifespan of a ZSYAN mesh bag packaging machine?
A: With proper maintenance, the expected operational lifespan is 10-15 years. Major components like servo motors and PLCs typically last 15+ years.
Getting Started
Transform your mesh bag packaging operations with ZSYAN:
Share Your Requirements: Product type, bag size, target speed
Receive Recommendation: Machine configuration and quotation
Test Your Product: Send samples for free testing at our facility
Confirm Order: Finalize specifications and production schedule
Production & Shipping: Build, test, and ship with full documentation
