    Vertical Mesh Bag Packaging Machine - Form Fill Seal
    Scope of application
  • Wide Range of Vacuum & Mesh Bag Packaging Applications:

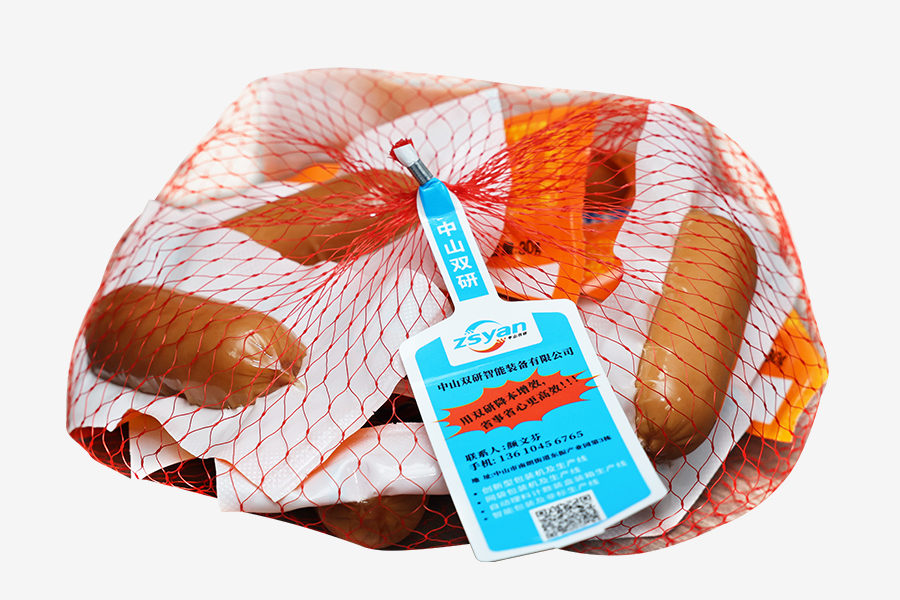

    - Vacuum Packaging: quail eggs, soy eggs, spicy food, ham sausage, jelly, small potatoes, vacuum-packed meat products

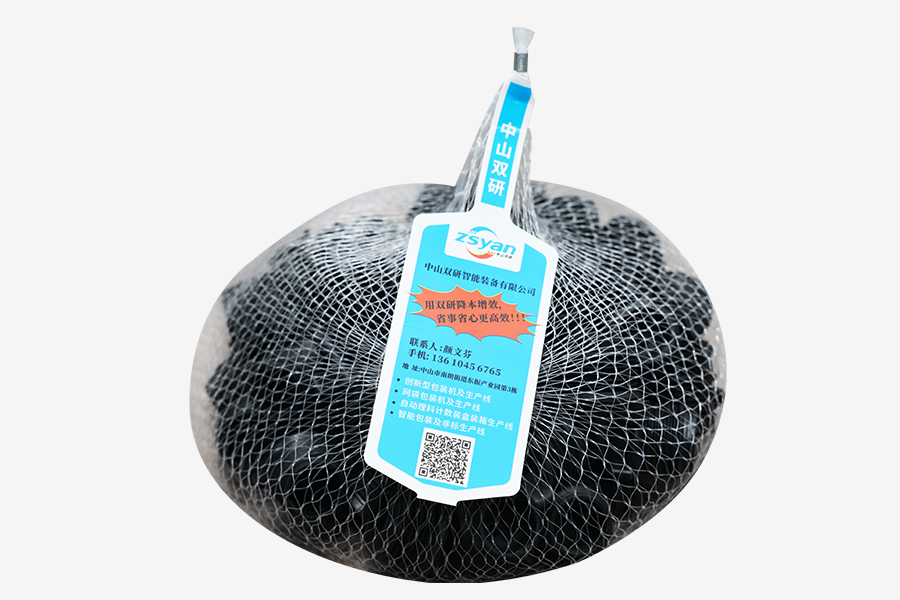

    - Granular Products: hardware parts, nuts, seeds, beans, rice grains, sugar, salt

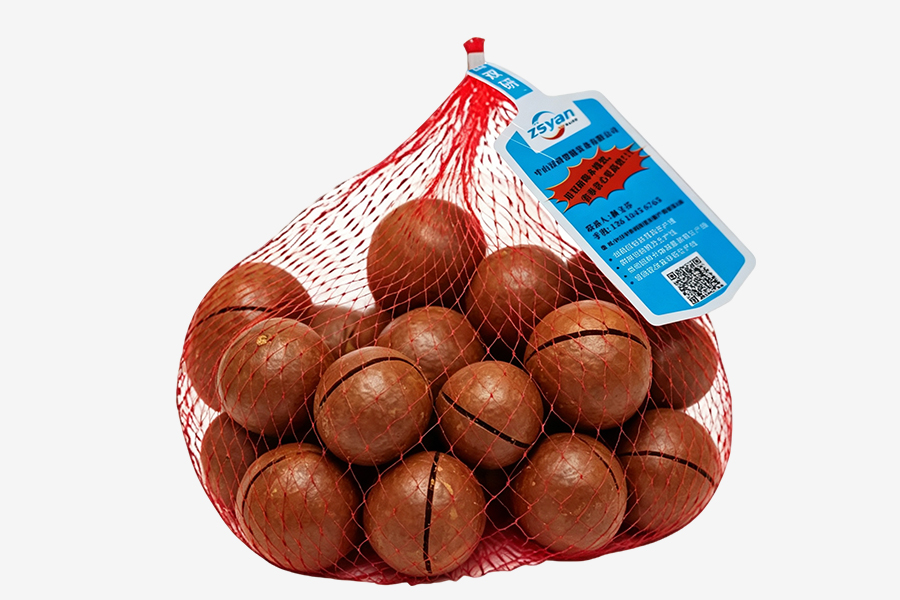

    - Snacks & Nuts: chestnuts, red dates, peanuts, passion fruit, almonds, cashews, sunflower seeds
    - Daily Necessities: sponges, dish brushes, scouring pads, bath accessories

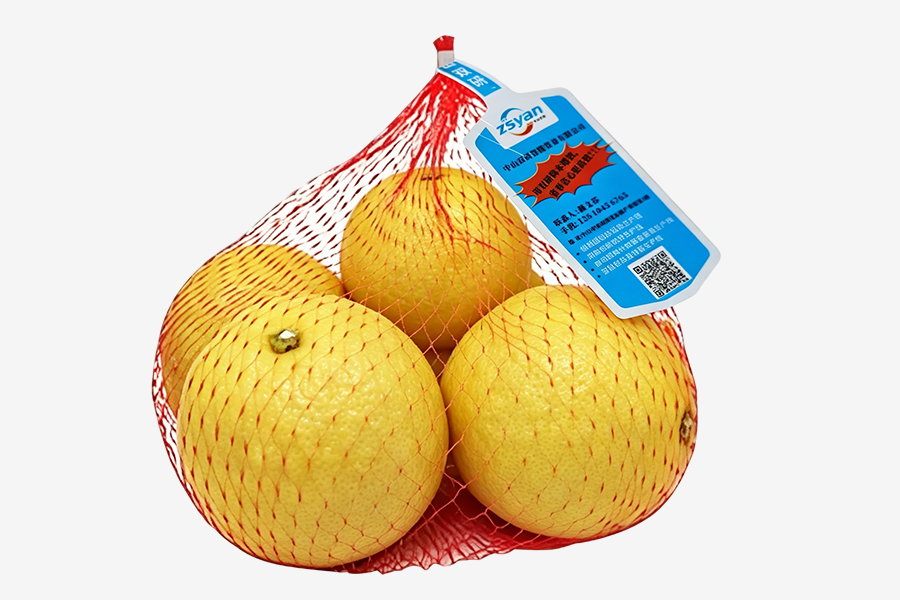

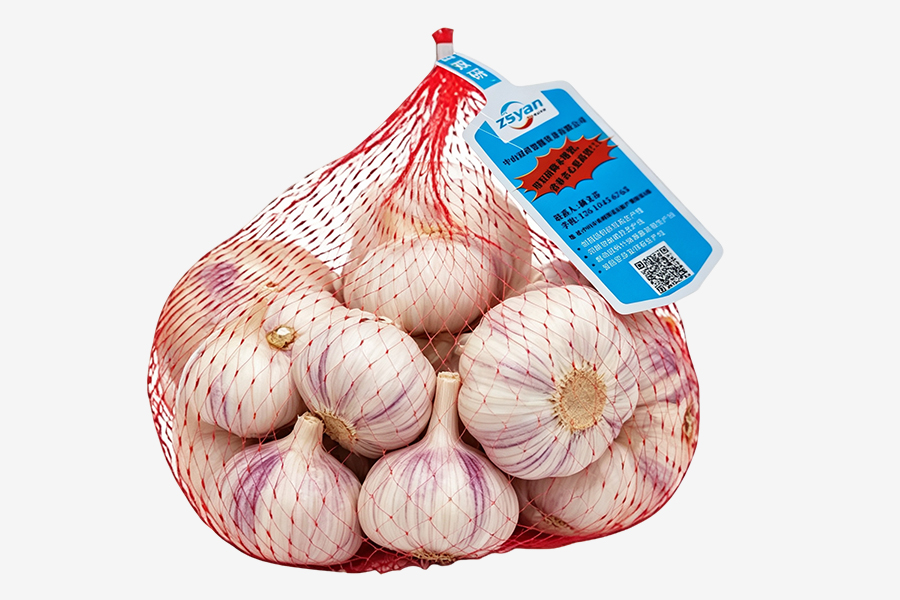

    - Agricultural Products: onions, garlic, citrus fruits, root vegetables
    - Toys & Small Items: toy balls, plastic components, small hardware

    Compatible with various mesh bag materials: PP mesh, PE mesh, jute mesh, non-woven fabric bags, and vacuum packaging films.

    Product advantages
  • Key Advantages:
    - Automatic Bag Making: Built-in film feeding and bag forming system, producing vertical mesh bags on the fly without pre-made bags
    - Smart Alarm System: Real-time monitoring with automatic alerts for no-net, no-label, and no-wire conditions, preventing production waste
    - Servo Label Delivery: Precision servo-controlled label feeding ensures accurate label positioning and consistent bag length
    - Precise Length Control: Digital control system with high positioning accuracy, ensuring uniform bag dimensions every time
    - Vacuum Packaging Compatible: Supports vacuum packaging film for extended product shelf life and premium presentation
    - 7-Inch Touch Screen HMI: Intuitive PLC control with multiple language support, easy parameter adjustment and 99 storable recipes
    - 304 Stainless Steel Construction: Food-grade contact parts meeting hygiene standards, easy to clean and maintain
    - Modular Quick-Change Design: Fast component replacement without tools, m

    Product Application

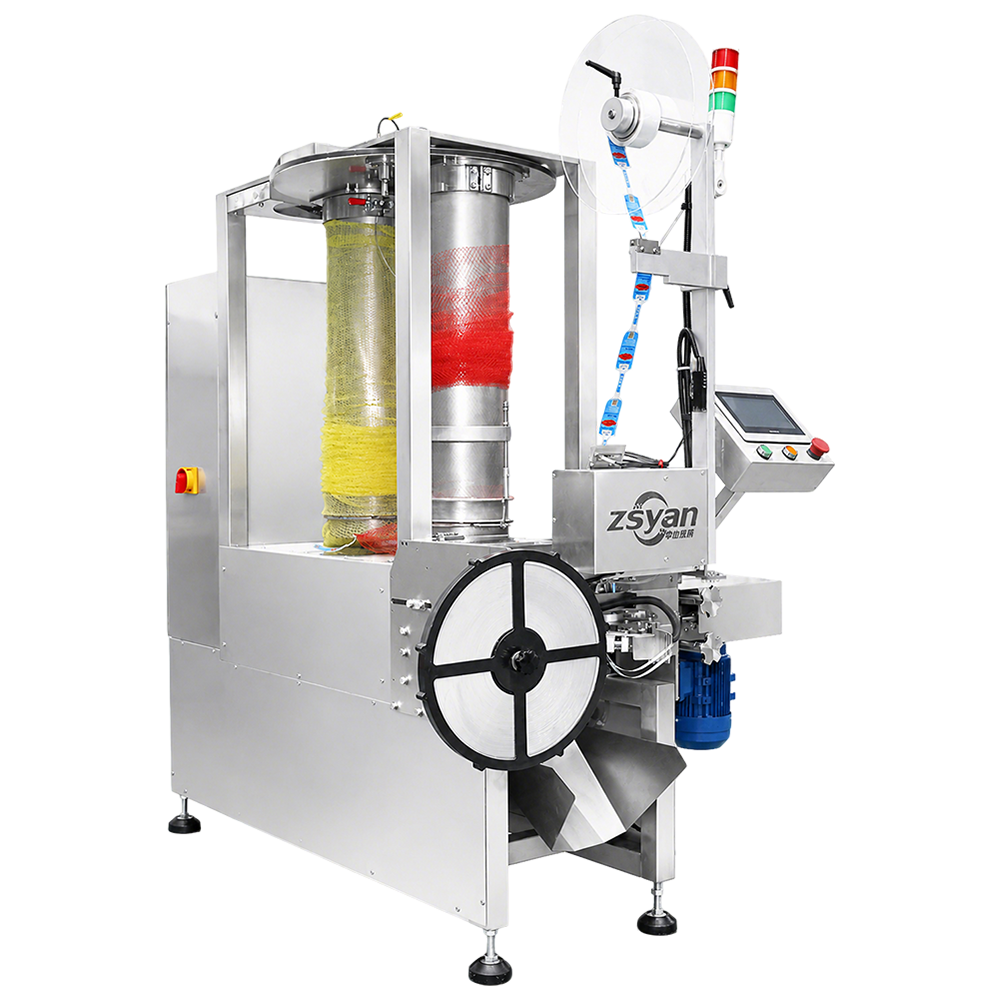

    Vertical mesh bag packaging machine front view - ZSYAN

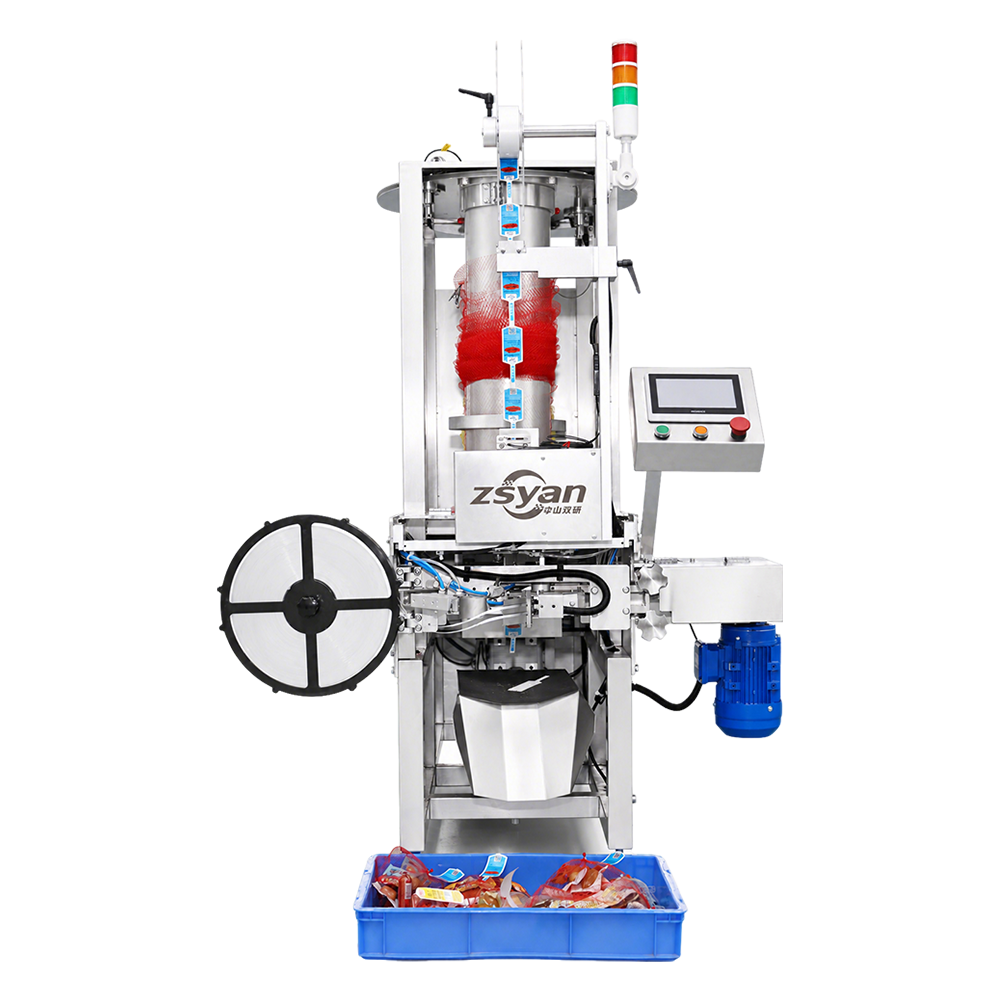

    Vertical mesh bag packaging machine control panel - ZSYAN

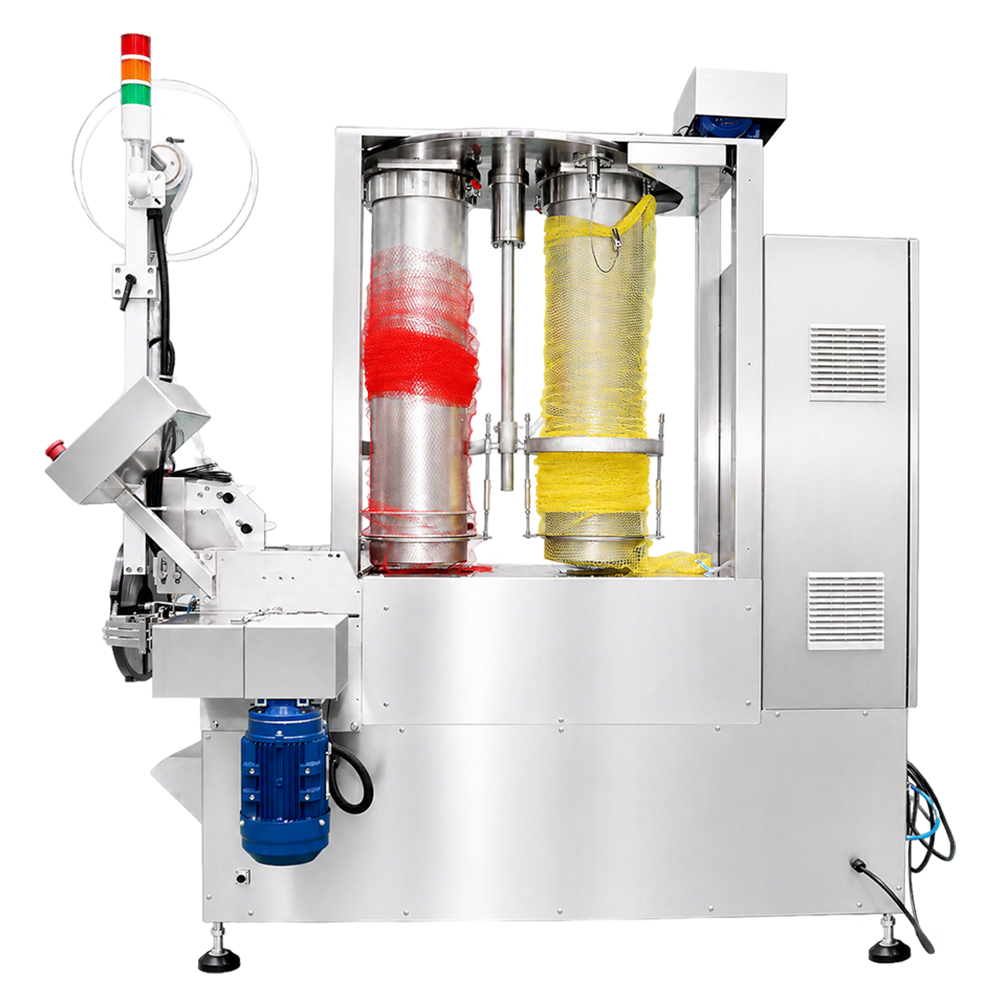

    Vertical mesh bag packaging machine film feeding system - ZSYAN

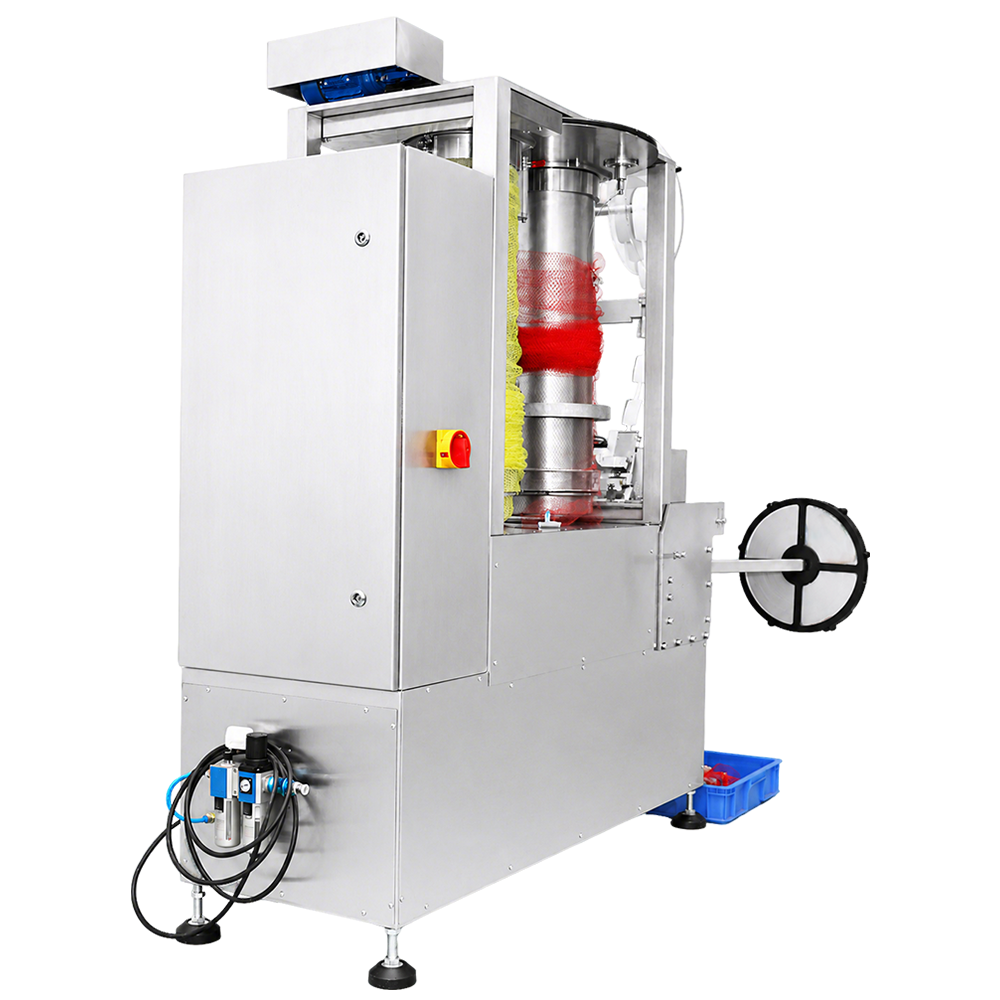

    Vertical mesh bag packaging machine packaging output - ZSYAN
    Product video
    Model parameters

    Technical Specifications

    ZSYAN vertical mesh bag packaging machine features servo motor drive, 7-inch color touch screen, and automatic bag making system. Packaging speed: 10-30 bags/min. Compatible with mesh bags and vacuum packaging films. Ideal for quail eggs, ham sausages, chestnuts, red dates, peanuts, and other products requiring vacuum or mesh bag packaging.

    Product Name1000g Vertical packaging machine5000g Vertical packaging machine
    Specification ModelSY-WDJ2500ASY-WDJ5000A
    Material304 stainless steel304 stainless steel
    Packaging scope200-1000g200-5000g
    Packaging speed20-35b/min20-35b/min
    Bag length accuracy±15mm±15mm
    Bucket specifications150190
    Touch screen7-inch color touch screen

    7-inch color touch screen

    Drive TypeServo motor+variable frequency motorServo motor+variable frequency motor
    Storable program9999
    LanguageMultiple languagesMultiple languages
    Power requirementsSingle phase AC220V/50HZ, 60HZSingle phase AC220V/50HZ, 60HZ
    Power consumption1-5KW1-5KW
    Package dimensions1800*1900*900mm1800*1900*900mm
    Machine weight500kg700kg



    Why Choose Us
    We are one of the most distinctive packaging machine manufacturers in China.
    Customized Design
  • Tailored feasibility analysis and layout planning
  • High Stability
  • Building durable, efficient, and automated systemsg
  • Quick Response
  • We are always on call and provide efficient service if you need it
  • Lifetime Maintenance
  • Provide after-sales support, technical support, and lifelong after-sales maintenance
  •
