ZSYAN Granule Packaging Machine: Complete Guide to Automated Granular Product Packing
Introduction
Granular products — from snacks and nuts to seeds and hardware — represent one of the largest segments in the packaging industry. Unlike powders or liquids, granules have unique flow characteristics that require specialized handling. ZSYAN (Single-Lane, Double-Lane, and Multi-Lane granule packaging machines deliver precision weighing, high-speed operation, and reliable performance for businesses worldwide.
This comprehensive guide covers everything you need to know about ZSYAN's granule packaging solutions.
Why Granule Packaging Requires Specialized Equipment
Granular products present distinct packaging challenges that differ from powders and liquids:
Particle Size Variation: Granules range from fine sand (0.5mm) to large nuts (30mm+), requiring different handling methods
Flow Characteristics: Some granules flow freely (sugar, salt), while others bridge or rat-hole (seeds, flakes)
Fragility: Delicate granules (cereals, chips) can break during high-drop filling, affecting product quality
Static Electricity: Dry granules generate static, causing them to cling to equipment surfaces
Density Variations: Bulk density varies widely (popcorn: 0.08g/cm³ vs. steel bolts: 7.8g/cm³), affecting fill volume accuracy
ZSYAN Granule Packaging Machine Series
Single-Lane Granule Packaging Machine
Compact and efficient, ideal for small to medium production volumes with a single packaging lane.
Technical Specifications:
Speed: 20-40 bags per minute
Weighing Range: 5g to 1000g per bag
Weighing System: Single-head volumetric cup or single weigher
Accuracy: ±0.5g to ±1g (depending on granule size)
Bag Size Range: Width 30-150mm, Length 40-200mm
Control: PLC with 7-inch touch screen
Power: 220V/50Hz, 2kW
Key Features:
Auger filler for free-flowing and slightly sticky granules
Volumetric cup filler for consistent-volume products
Drop-height adjustment to protect fragile granules
Automatic film tracking with photoelectric sensor
Quick changeover between different bag sizes
Ideal Applications:
Snack foods (nuts, seeds, cereal pieces)
Dried fruits and vegetables
Pet food (dry kibble)
Hardware items (nails, screws, beads)
Agricultural seeds
Double-Lane Granule Packaging Machine
Dual-lane design doubles output without doubling the machine footprint.
Technical Specifications:
Speed: 40-70 bags per minute (20-35 per lane)
Weighing System: Twin weighers or single multi-head weigher splitting to two lanes
Accuracy: ±0.3g to ±0.8g per bag
Bag Size Range: Width 40-200mm, Length 50-250mm
Power: 380V/50Hz, 3-phase, 3.5kW
Key Features:
Independent temperature control per sealing station
Servo-driven film feeding for precise bag length
Automatic tension control for consistent film transport
Quick changeover between products (<20 minutes)
Modular design for easy maintenance
Ideal Applications:
Medium-volume snack production
Multi-product facilities (different granule types)
Expanding businesses needing scalable capacity
Contract packing services

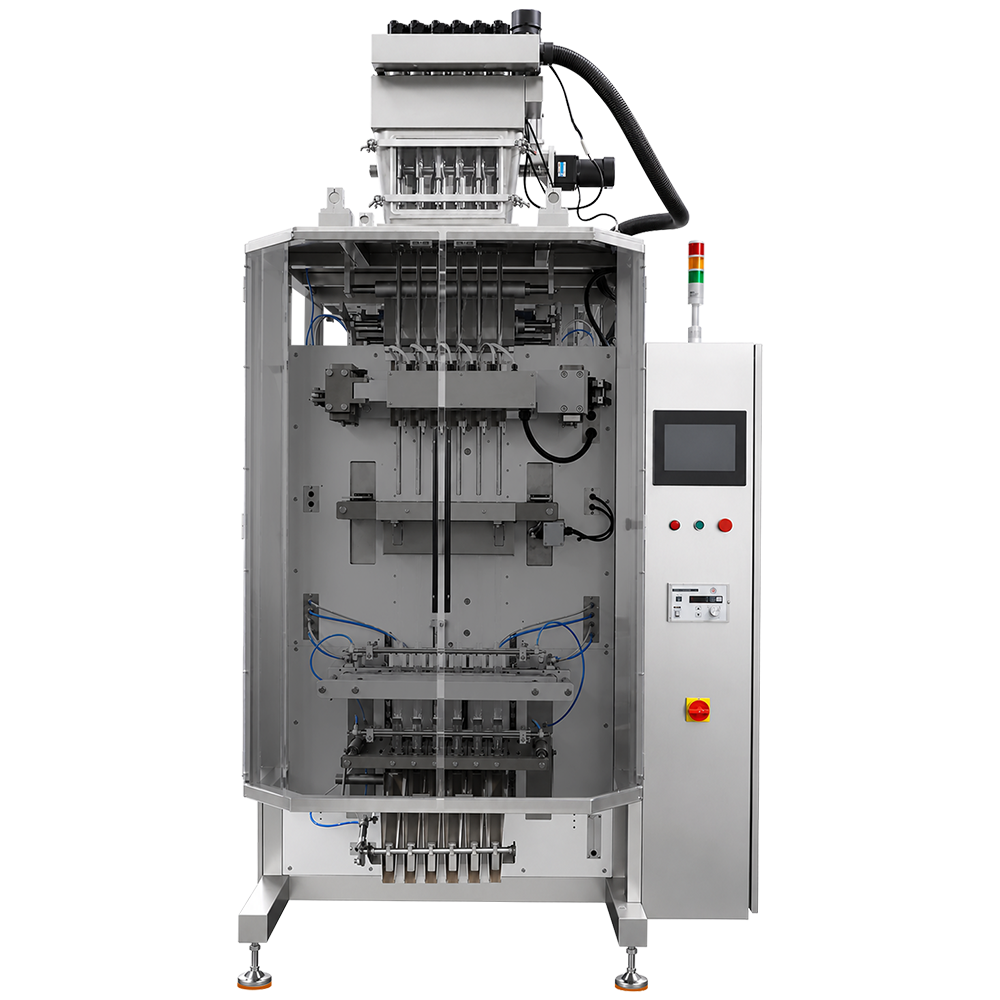

Multi-Lane Granule Packaging Machine
Maximum throughput for high-volume production environments.
Technical Specifications:
Lanes: 2 to 6 lanes configurable
Speed: Up to 150 bags per minute (total, all lanes)
Weighing System: Multi-head weigher (10-30 buckets) with lane distribution
Accuracy: ±0.2g to ±0.5g per bag
Capacity: 10g to 2000g per bag
Integration: Compatible with automatic case packers and palletizers
Key Features:
Centralized control panel for all lanes
Automatic line synchronization
Real-time production monitoring and reporting
Emergency stop system per lane
Optional vision inspection for seal quality
Ideal Applications:
Large-scale snack food production
Industrial hardware packaging
Bulk agricultural seed packaging
High-volume pet food manufacturing
Granule Filling Technology Comparison
Auger Filling
Best For: Free-flowing and slightly sticky granules (sugar, salt, seeds) Accuracy: ±0.5-1% Speed: High Maintenance: Low How It Works: A rotating screw (auger) pushes a measured volume of granules into the bag. The number of rotations determines the fill weight.
Volumetric Cup Filling
Best For: Consistent-volume granules (cereal pieces, nuts, dried fruit) Accuracy: ±1-2% Speed: Very high Maintenance: Very low How It Works: A rotating cup assembly fills each cavity with a predetermined volume of product, then dumps it into the bag.
Multi-Head Weigher Filling
Best For: Mixed-size granules (snacks, chips, mixed nuts) Accuracy: ±0.2-0.5% Speed: High Maintenance: Moderate How It Works: Multiple weighing buckets (10-30) feed product into combinators that select the optimal combination to hit the target weight within tolerance.
Checkweigher Filling
Best For: High-value granules where overfilling is costly (premium nuts, specialty seeds) Accuracy: ±0.1-0.3% Speed: Medium Maintenance: Low How It Works: Each bag is weighed after filling. If underweight, the system triggers a refill cycle. If overweight, the fill amount is automatically adjusted.
How Granule Packaging Machines Work
Step 1: Product Hopper Loading
Granular products are loaded into the machine's hopper. For free-flowing products, gravity feeds the product to the filling system. For bridging-prone products, vibratory feeders or agitators ensure consistent flow.
Step 2: Film Feeding and Tube Formation
Roll stock film is fed through servo-driven rollers and wrapped around the forming tube. The longitudinal seam is pre-sealed by heated rollers.
Step 3: Granule Filling
The filling system (auger, cup, or multi-head weigher) measures and deposits the exact quantity of granules into the film tube pocket. Drop height is adjustable to protect fragile products.
Step 4: Transverse Sealing and Cutting
Cross-sealing jaws create the top and bottom seals while a cutting blade separates individual bags. Sealing temperature is adjusted based on film type and ambient conditions.
Step 5: Discharge and Collection
Completed bags discharge onto a conveyor belt for collection, counting, or automatic case packing.
Choosing the Right Granule Packaging Machine
Factor 1: Granule Type and Size
| Granule Type | Recommended Filling System | Machine Type |
|---|
| Fine granules (salt, sugar) | Auger or volumetric cup | Single or double lane |
| Medium granules (nuts, seeds) | Multi-head weigher | Double or multi-lane |
| Large granules (chips, cereal) | Multi-head weigher with wide chute | Multi-lane |
| Fragile granules (chips, crackers) | Low-drop multi-head weigher | Multi-lane |
| Irregular granules (mixed snacks) | Multi-head weigher | Multi-lane |
Factor 2: Production Volume
| Daily Output | Recommended System |
|---|
| Under 5,000 bags | Single-lane with volumetric cup |
| 5,000-20,000 bags | Double-lane with twin weighers |
| 20,000-50,000 bags | Multi-lane with multi-head weigher |
| Over 50,000 bags | Multi-lane with checkweigher feedback |
Factor 3: Product Value
Low-value products (salt, basic seeds): Volumetric cup filling (most economical)
Medium-value products (nuts, dried fruit): Multi-head weigher (best balance)
High-value products (premium saffron, specialty seeds): Checkweigher feedback (minimum overfill)
Investment and ROI Analysis
Cost Comparison
| Cost Factor | Manual Packing | Semi-Auto | ZSYAN Fully Automated |
|---|
| Labor (per shift) | 5 operators | 2 operators | 1 operator |
| Output (bags/day) | 400 | 5,000 | 20,000-80,000 |
| Filling Accuracy | ±3-5% | ±1-2% | ±0.2-0.5% |
| Material Waste | High | Medium | Minimal |
| Payback Period | N/A | 8-14 months | 4-8 months |
Frequently Asked Questions
Q1: What is the typical lead time for a ZSYAN granule packaging machine?
A: Standard machines ship within 25-35 days. Custom configurations may take 40-50 days.
Q2: Can the machine handle mixed-size granules (e.g., trail mix)?
A: Yes, multi-head weigher systems excel at mixed-size products. The combinator algorithm selects the optimal bucket combination for each bag.
Q3: What is the filling accuracy for fragile products like potato chips?
A: For fragile products, ZSYAN uses low-drop multi-head weigher systems with padded chutes, achieving ±0.5g accuracy while maintaining 95%+ product integrity.
Q4: Does the machine support different bag sizes on the same line?
A: Yes, double-lane and multi-lane machines support quick changeover between bag sizes. Changing the forming tube and adjusting parameters takes 15-20 minutes.
Q5: What certifications does ZSYAN hold?
A: CE marking (EU Machinery Directive), ISO 9001 quality management, and FDA-compliant material certifications.
Q6: How does ZSYAN handle spare parts shipping?
A: Standard spare parts shipped via DHL/FedEx express (3-5 days worldwide).
Q7: Is training provided with the machine?
A: Yes. Video call training before shipment. On-site training available.
Q8: What is the expected lifespan of a ZSYAN granule packaging machine?
A: With proper maintenance, 10-15 years. Major components last 15+ years.
Getting Started
Share Your Requirements: Product type, granule size, target speed
Receive Recommendation: Machine configuration and quotation
Test Your Product: Free sample testing at our facility
Confirm Order: Finalize specifications and production schedule
Production & Shipping: Build, test, and ship with full documentation
