    Three-Sided Sealing Machine - High Speed Sachet Packing
    Scope of application
  • Wide Application Range:
    - Food: white sugar, monosodium glutamate (MSG), dehydrated vegetables, instant coffee, tea bags, seasoning powder, spices
    - Pharmaceuticals: Radix Isatidis tablets, vitamin capsules, herbal medicine granules, medical powder
    - Chemical: silica gel desiccant, fertilizer granules, detergent powder, paint powder, industrial chemicals
    - Daily Necessities: wet wipes, facial masks, shampoo sachets, soap packets, condiment pouches
    - Agricultural: seeds, pesticides, herbicides, animal feed granules

    Compatible with flexible packaging films: PET/PE, nylon/PE, paper/PE, aluminum foil laminates, and biodegradable materials.

    Product advantages
  • Key Advantages:
    - High Speed Performance: Capable of 20-50 bags/min, significantly faster than traditional packaging machines
    - Servo-Driven Precision: Servo motor bag pulling system ensures high positioning accuracy ±1mm, reducing material waste
    - Temperature Control Module: Fast heating with PID temperature control, maintaining constant temperature for consistent sealing quality
    - Easy Weight Adjustment: Measuring cup design allows quick and accurate weight calibration without tools
    - Modular Construction: Quick-release modular design enables fast component replacement, minimizing production downtime
    - 7-Inch Color HMI: Intuitive touch screen interface with multiple language support for easy operation
    - Built-in Safety Protection: Fault alarm system with automatic shutdown prevents damage and ensures operator safety
    - Storable Programs: 99 programmable recipes stored in memory for rapid batch switching between different products

    Product Application

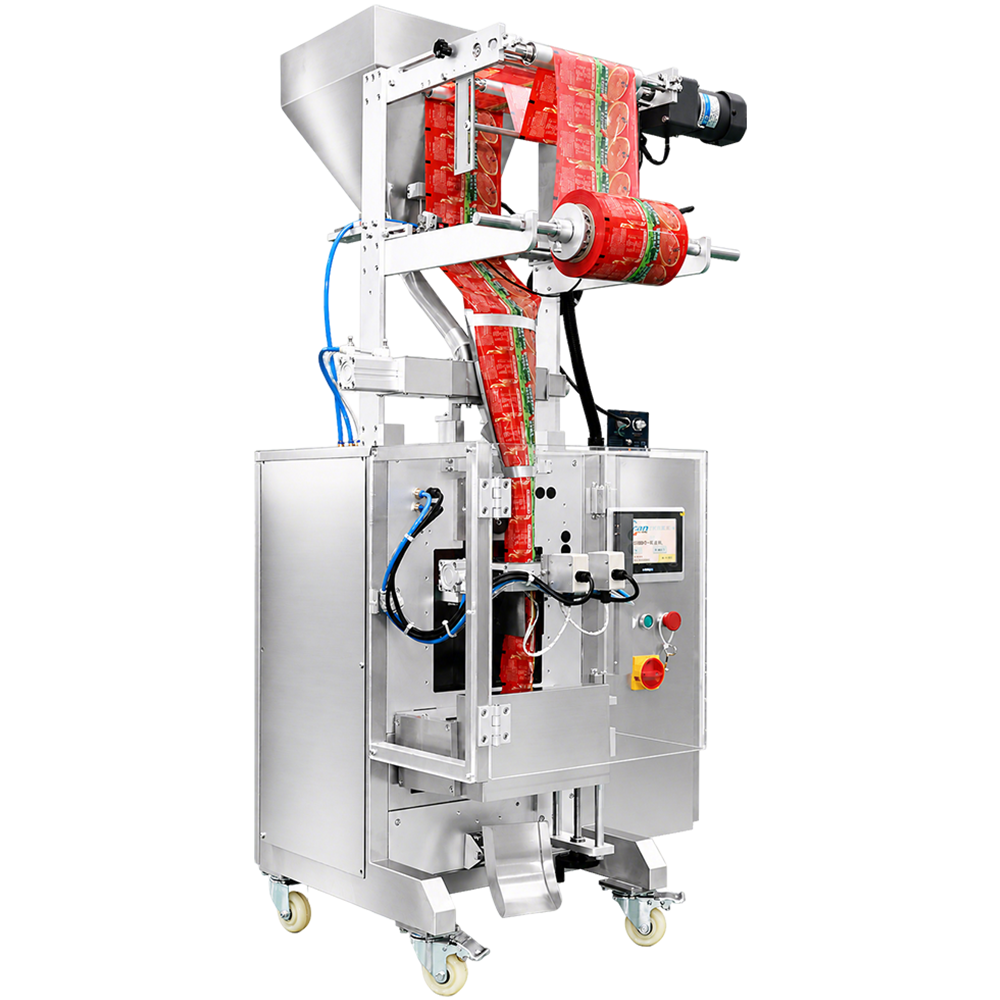

    Three-sided sealing machine front view - ZSYAN

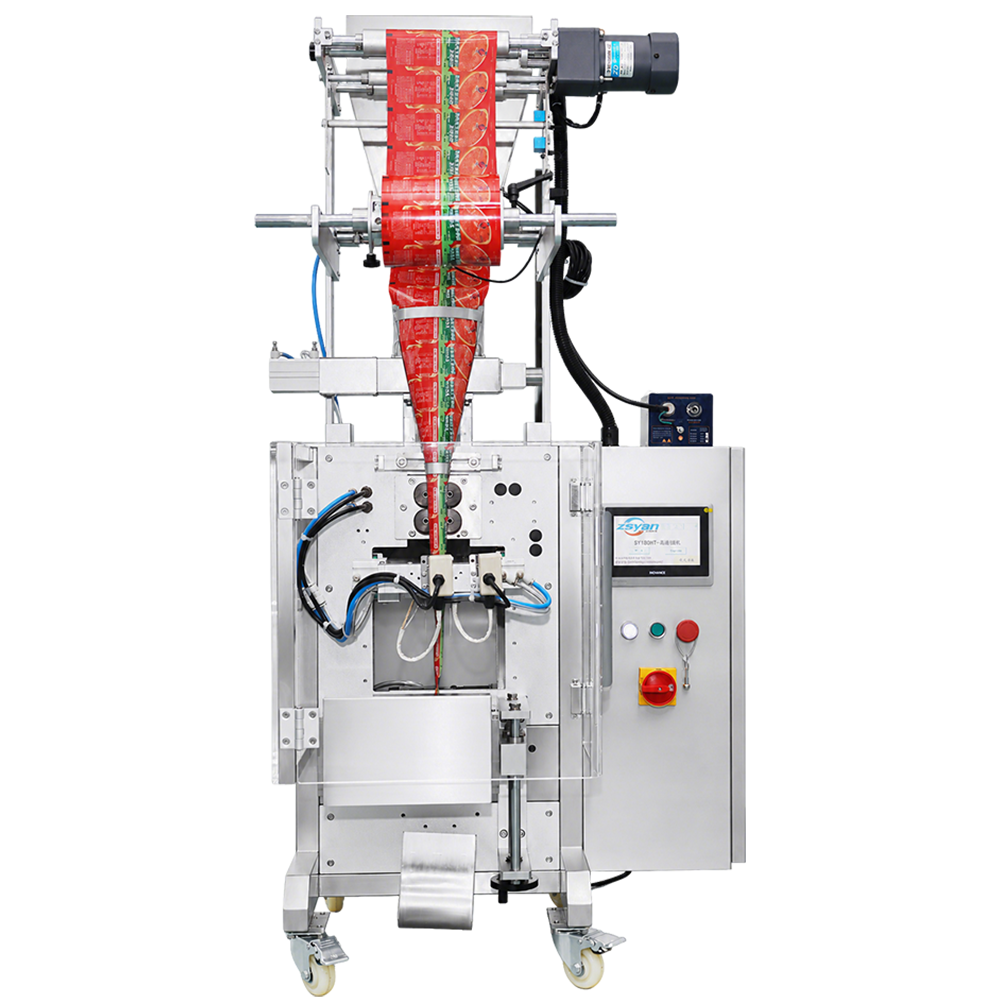

    7-inch touch screen control panel - ZSYAN

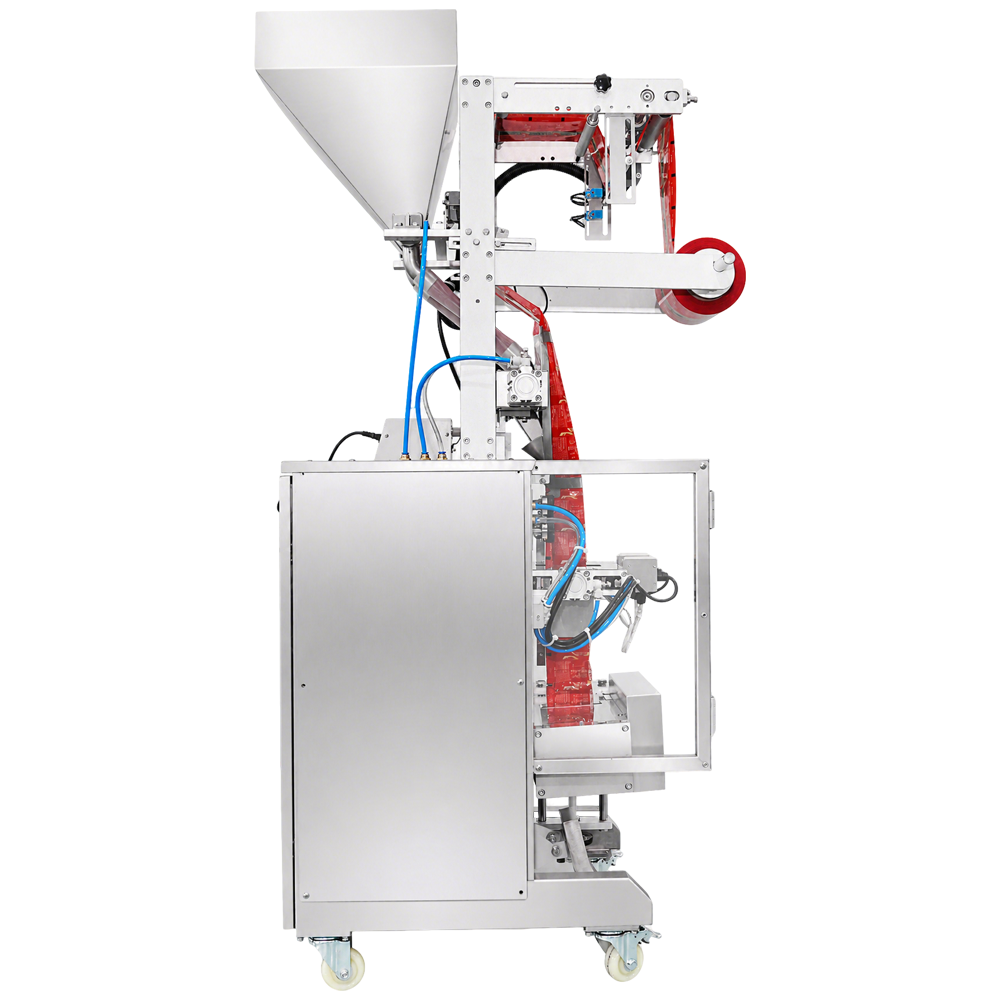

    Servo-driven precision packaging system - ZSYAN
    Product video
    Model parameters

    Technical Specifications

    The SY-L180 and SY-L180S series high-speed packaging machines are designed for three-sided sealing of sachets and pouches. Available in back sealing and three-sided sealing configurations, these machines feature servo-driven packaging, PLC control, and customizable bag dimensions from 50-160mm in length. Ideal for food, pharmaceutical, chemical, and daily necessity industries.

    Product NameBack sealing machineThree sided sealing machine
    Specification ModelSY-L180SY-L180S
    Material304 stainless steel
    Packaging scope1-50g
    Packaging speed20-50b/min
    Bag length accuracy50-160±1mm
    Cut-off modePatterned cutting/plain cutting/fixed wrap cutting
    Touch screen7-inch color touch screen
    Drive TypeServo motor
    Storable program99
    LanguageMultiple languages
    Power requirementsSingle phase AC220V/50HZ, 60HZ
    Power consumption2-5KW
    Package dimensions1000*1500*1900mm
    Machine weight450kg


    The High-Speed Packaging Machine by Shuangyan Intelligent Equipment (ZSYAN) is designed for businesses that demand speed, precision, and reliability. Capable of packaging 20-50 bags per minute, our machines outperform standard models on the market by 20-30%. Built with 304 stainless steel and powered by servo motors, these packaging systems are ideal for food, pharmaceutical, chemical, and agricultural industries.

    Whether you're packaging granules, powders, liquids, or pastes, ZSYAN's high-speed packaging machines offer flexible configurations — from single-lane to multi-lane setups — to match your production volume and product requirements.



    Why Choose Us
    We are one of the most distinctive packaging machine manufacturers in China.
    Customized Design
  • Tailored feasibility analysis and layout planning
  • High Stability
  • Building durable, efficient, and automated systemsg
  • Quick Response
  • We are always on call and provide efficient service if you need it
  • Lifetime Maintenance
  • Provide after-sales support, technical support, and lifelong after-sales maintenance
  •
