    Double-Lane Powder Packaging Machine - Precision Dosing
    Scope of application
  • Wide Range of Powder Applications:
    - Food Industry: flour, rice powder, coffee powder, milk powder, protein powder, cocoa powder, spice powder, seasoning powder, instant drink mix, bakery ingredients
    - Health & Nutrition: TCM herbal powder, vitamin powder, probiotic powder, dietary supplement powder, collagen powder, amino acid powder
    - Pharmaceutical: medicinal powder, capsule filling powder, tablet coating powder, traditional Chinese medicine decoction powder
    - Chemical Industry: fertilizer powder, pesticide powder, detergent powder, paint powder, chemical additives, mask material powder, silica gel powder
    - Animal Feed: pet food powder, livestock feed powder, aquaculture feed powder

    Compatible with various packaging formats: three-side seal, back seal, quad seal, and pillow pouch.

    Product advantages
  • Key Advantages:
    - Dual-Lane Configuration: Two independent weighing channels operate simultaneously, doubling output speed without sacrificing accuracy
    - Precision Volumetric Dosing: Measuring cup system with easy weight adjustment, accuracy ±0.5%, perfect for consistent powder fill weight
    - Servo-Driven Bag Pulling: High positioning accuracy ±1mm, reducing film waste and ensuring precise bag length every time
    - PID Temperature Control: Fast heating module with ±1°C precision, ensuring consistent seal quality across different packaging materials
    - Fully Automatic Operation: Automatic bagging, coding, and cutting — integrated production line from weighing to finished sealed pouch
    - Modular Quick-Change Design: Easy and fast component replacement without tools, minimizing production downtime and changeover time
    - 7-Inch Color Touch Screen: Intuitive HMI with multiple language support, easy parameter adjustment and recipe management
    - 304 Stainless Steel Constructi

    Product Application

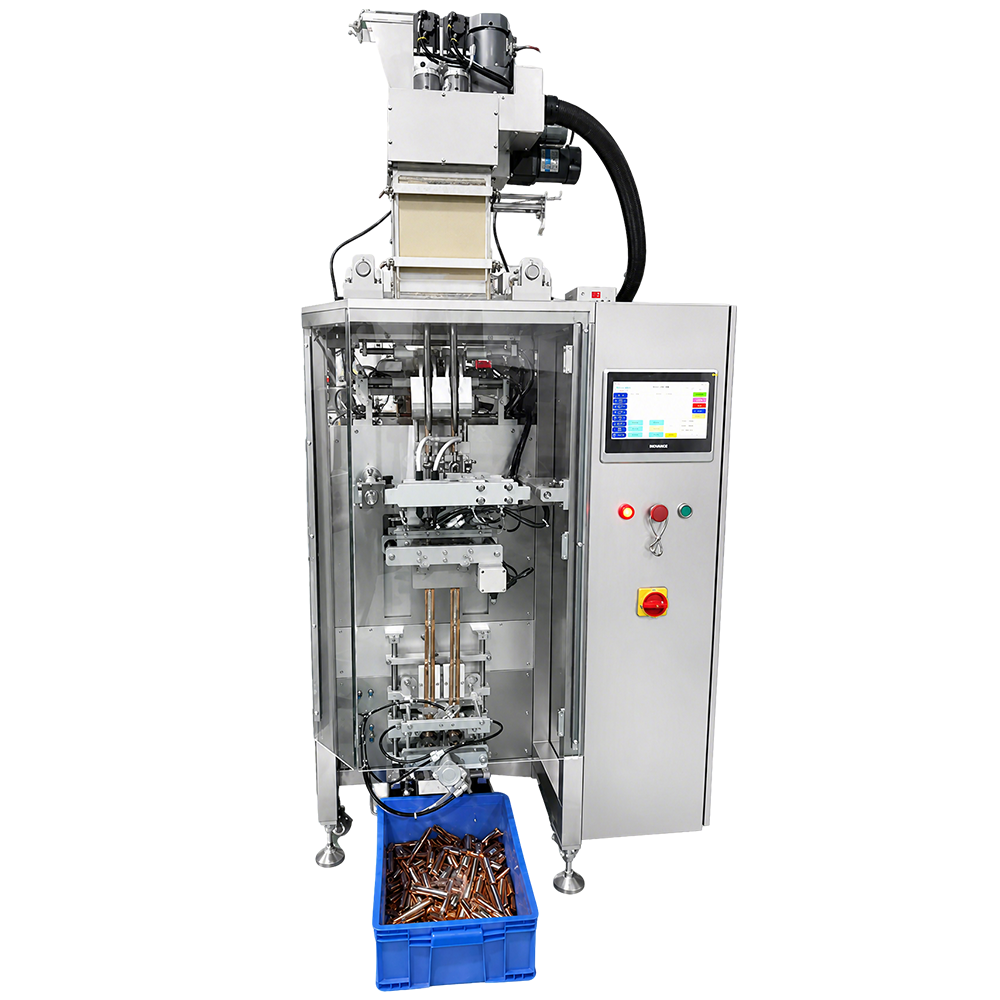

    Double-lane powder packaging machine - ZSYAN
    Product video
    Model parameters

    Technical Specifications

    The SY-L2L180/240 double-lane powder packaging machine offers two independent weighing channels for doubled output. Built with 304 stainless steel, servo motor drive, and PLC 7-inch touch screen control. Packaging scope: 1-50g per bag. Speed: 20-50 bags/min total. Cut-off modes include round corner cutting, pattern cutting, and plain cutting. Storable programs: 99 recipes.

    Product featuresBack sealing machineThree sided sealing machineFour sided sealing machine
    Specification ModelSY-L2L180/240SY-L2L180S/240SSY-L180F/240F/32
    Material304 stainless steel
    Packaging scope

    1-50g

    Packaging speed20-50b/min
    Bag length accuracy50-160±mm
    Cut-off modeRound corner cutting/pattern cutting/plain cutting
    Touch screen7-inch color touch screen
    Drive TypeServo motor
    Storable program99

    Language

    Multiple languages
    Power requirementsSingle phase AC220V/50HZ, 60HZ

    Power consumption

    2-5KW
    Package dimensions1700*1200*1700mm
    Machine weight600kg
