    Single-Lane Liquid Packaging Machine - Paste Filling
    Scope of application
  • Wide Range of Liquid & Paste Packaging Applications:
    - Food Liquids: honey, syrup, cooking oil, soy sauce, vinegar, juice, milk, cream, liquid seasoning
    - Pharmaceutical Liquids: oral suspension, cough syrup, mouthwash, liquid medicine, antiseptic solution
    - Personal Care: shampoo, body lotion, hand cream, face cream, hair conditioner, liquid soap, toothpaste
    - Chemical Liquids: chemical reagents, cleaning solutions, pesticides, herbicides, liquid fertilizers
    - Paste Products: thick creams, ointments, gel pastes, butter, jam, marmalade, peanut butter

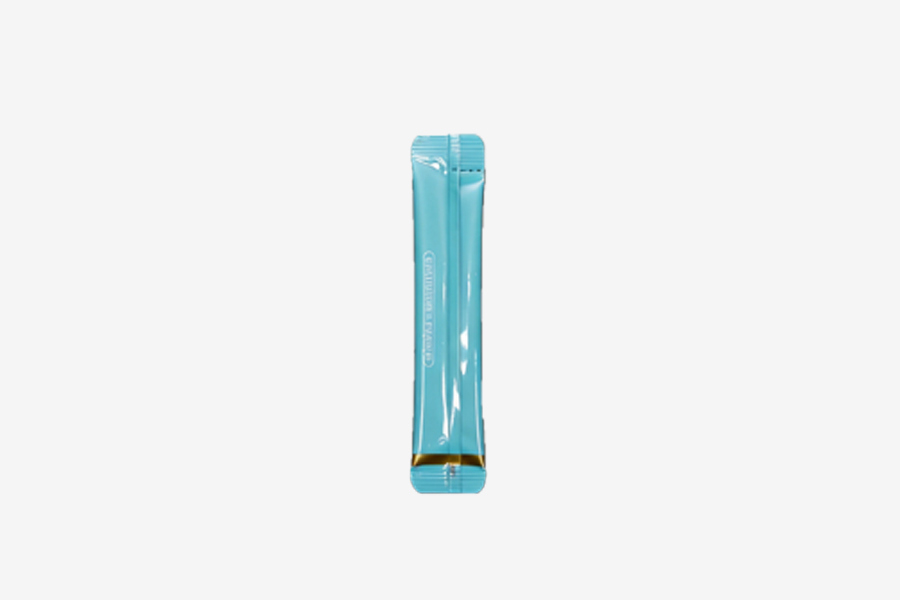

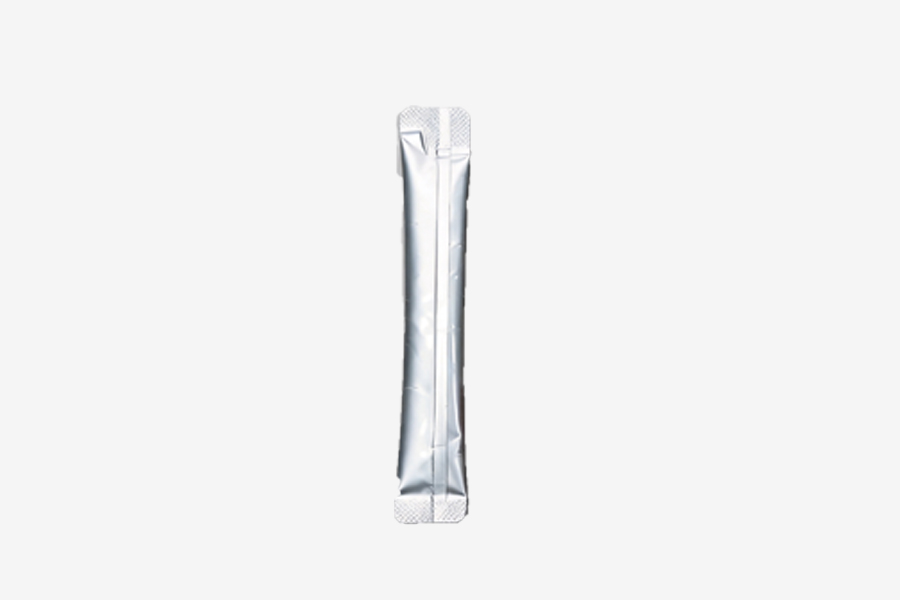

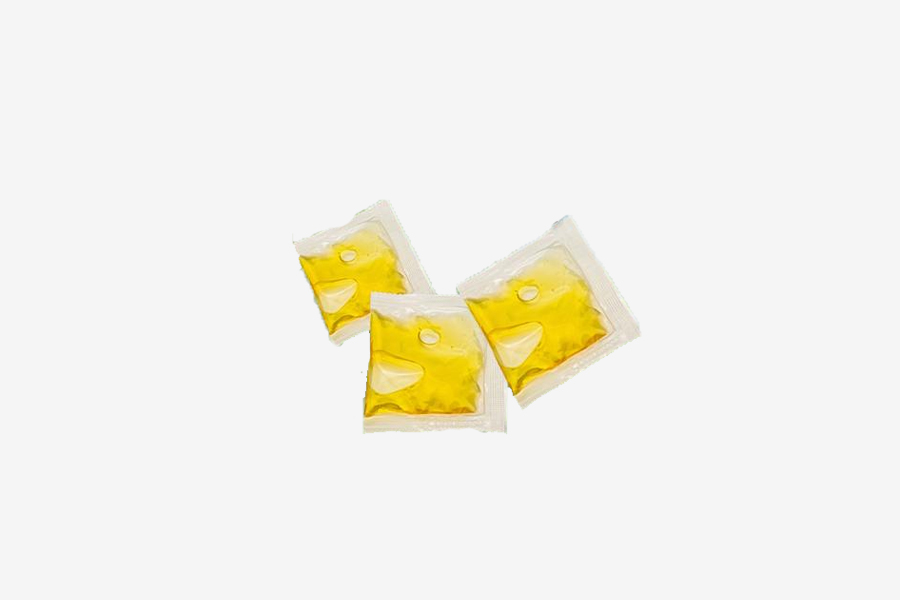

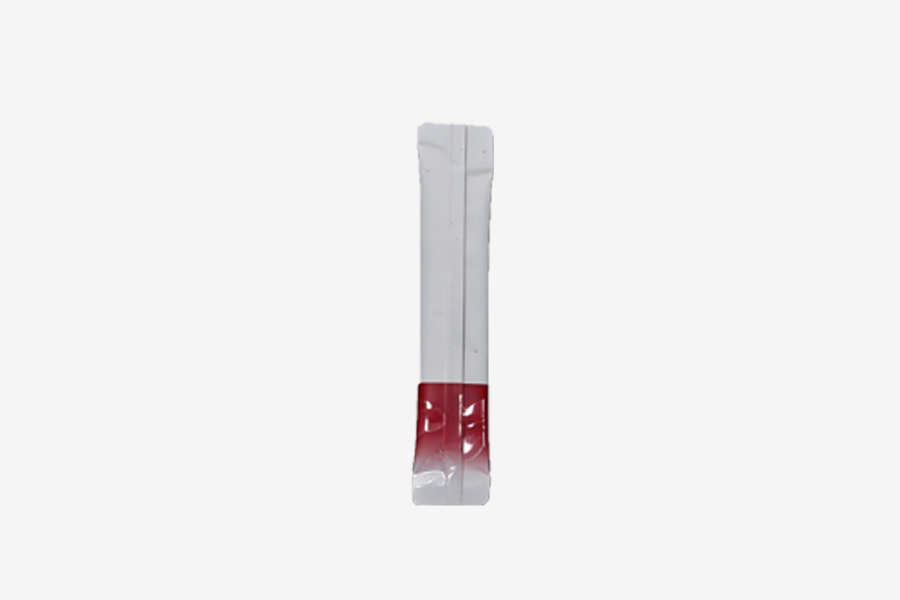

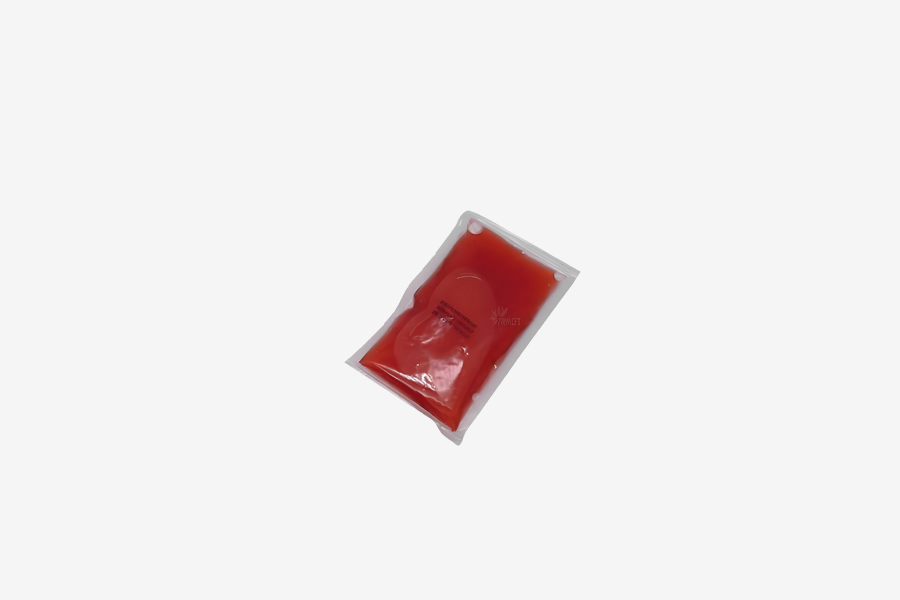

    Compatible with various packaging formats: pillow pouch, three-side seal, back seal, quad seal, and spout pouch.

    Product advantages
  • Key Advantages:
    - Single-Lane Precision Filling: Dedicated single-lane design ensures accurate liquid and paste dispensing with minimal waste
    - Automatic Bagging/Coding/Cutting: Fully integrated production line from filling to sealed finished pouch — no manual intervention needed
    - PID Temperature Control: Fast heating module with ±1°C precision, ideal for heat-sensitive liquids and viscous pastes
    - Servo-Driven Bag Pulling: High positioning accuracy ±1mm, reducing film waste and ensuring precise bag length
    - Measuring Cup Type: Easy weight adjustment with precision measuring cup system, suitable for 1-1000g packaging range
    - Modular Quick-Change Design: Fast component replacement without tools, minimizing downtime when switching between products
    - 7-Inch Color Touch Screen: Intuitive PLC control with multiple language support, easy parameter adjustment and 99 storable recipes
    - 304 Stainless Steel Construction: Food-grade contact parts meeting FDA and CE certif

    Product Application

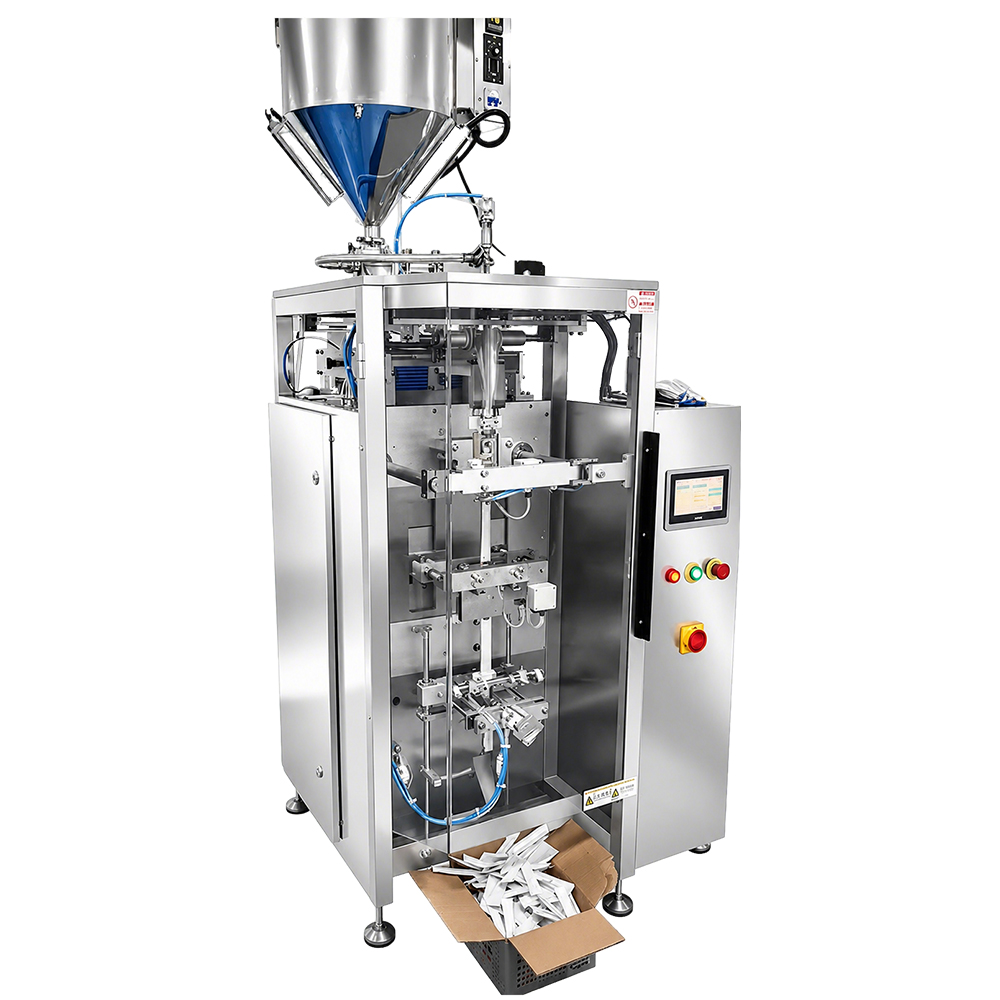

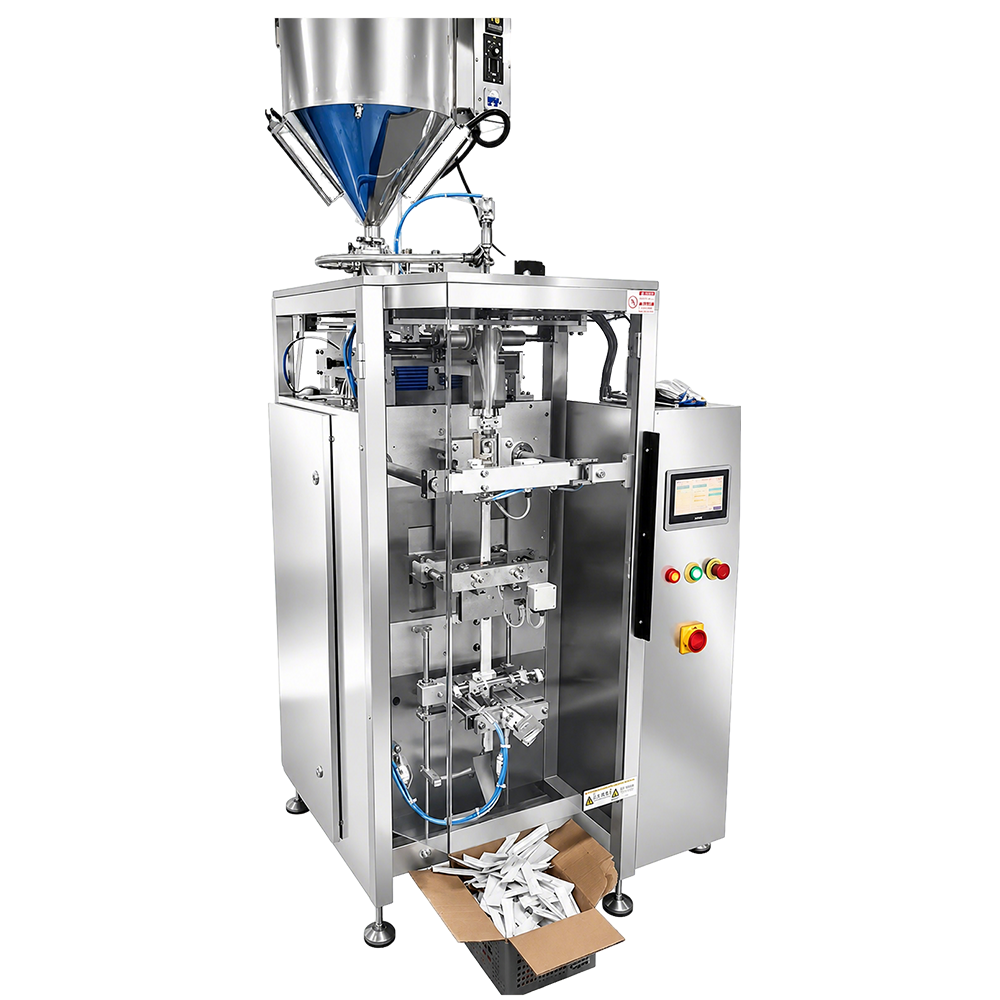

    Single-lane liquid packaging machine front view - ZSYAN
    Product video
    Model parameters

    Technical Specifications

    ZSYAN single-lane liquid packaging machine covers back sealing (SY-L180/240/320/420/820), three-sided sealing (SY-L180S/240S/320S/420S), and four-sided sealing (SY-L180F/240F/320F/420F) models. Packaging scope: 1-1000g. Speed: 20-50 bags/min. 304 stainless steel construction, servo motor drive, 7-inch color touch screen. Cut-off modes include round corner cutting, pattern cutting, and plain cutting.

    Product featuresBack sealing machineThree sided sealing machineFour sided sealing machine
    Specification ModelSY-L180/240/320/420/820SY-L180S/240S/320S/420SSY-L180F/240F/320F/420F
    Material304 stainless steel
    Packaging scope

    1-1000g

    Packaging speed20-50b/min
    Bag length accuracy50-160±mm
    Cut-off modeRound corner cutting/pattern cutting/plain cutting
    Touch screen7-inch color touch screen
    Drive TypeServo motor
    Storable program99

    Language

    Multiple languages
    Power requirementsSingle phase AC220V/50HZ, 60HZ

    Power consumption

    2-5KW
    Package dimensions1700*1200*1700mm
    Machine weight600kg



    Why Choose Us
    We are one of the most distinctive packaging machine manufacturers in China.
    Customized Design
  • Tailored feasibility analysis and layout planning
  • High Stability
  • Building durable, efficient, and automated systemsg
  • Quick Response
  • We are always on call and provide efficient service if you need it
  • Lifetime Maintenance
  • Provide after-sales support, technical support, and lifelong after-sales maintenance
  •
    Request A Quote

    *Name

    *Email

    *Phone or WhatsApp

    Country

      Message

    The comparison of machine appearance, technical parameters, functional specifications, and data displayed on this page comes from ZSYAN's internal laboratory. All test results and experimental data should be based on actual machines.
